Product number:
PROD5305

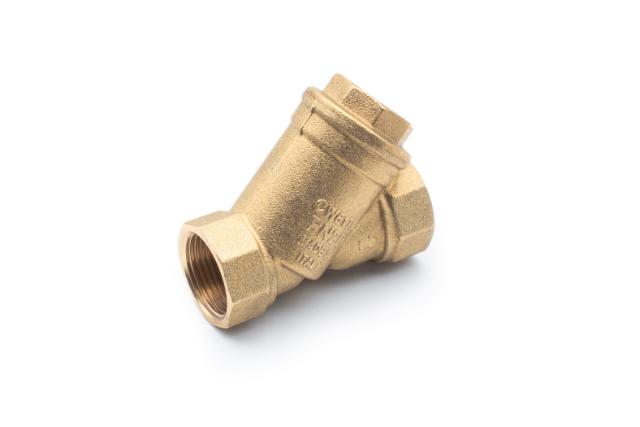

Y-Strainer
- Mouldpro
Files
Specifications
Quality
• Suitable for industrial, pneumatic and hydraulic installations

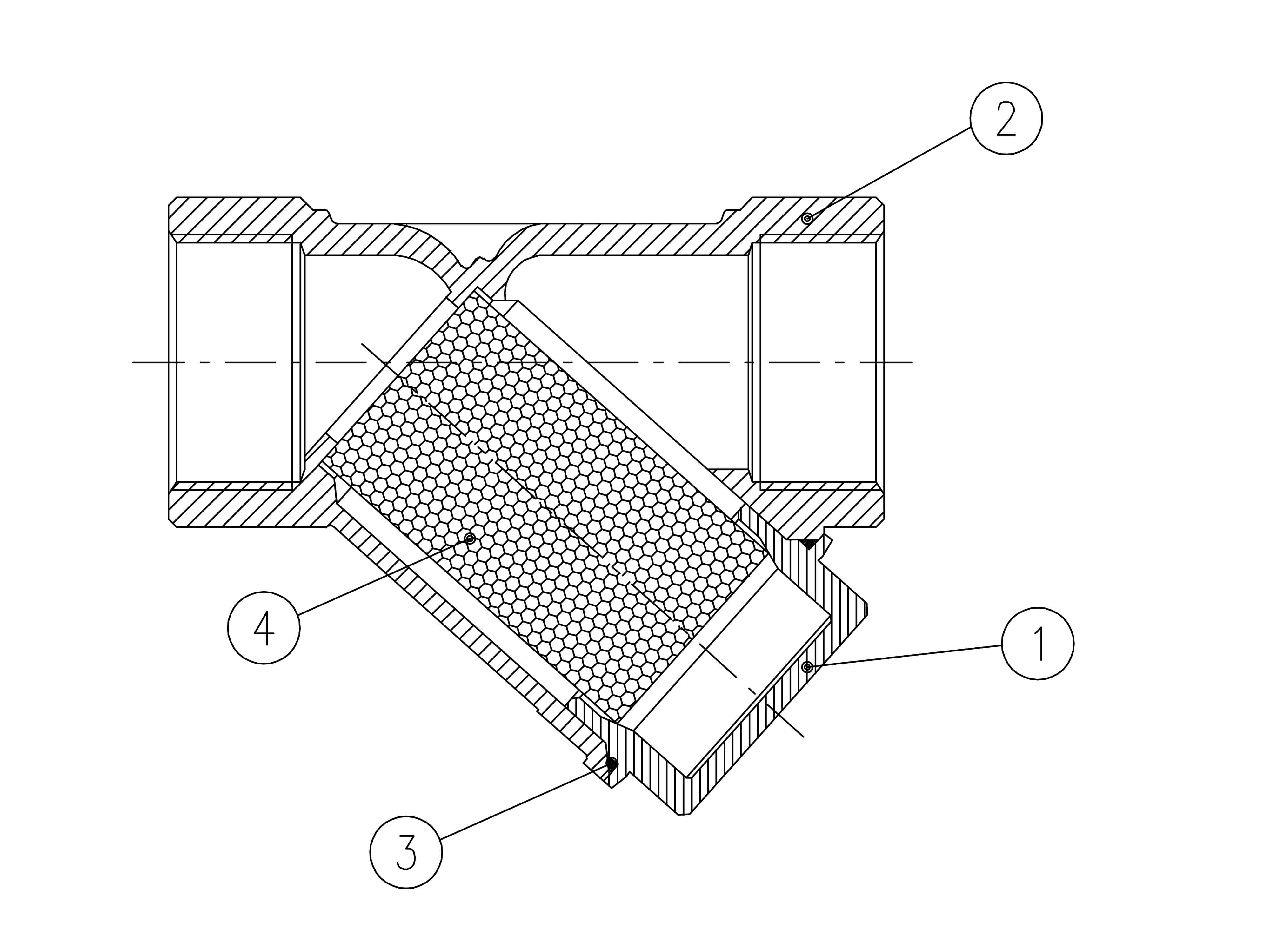

Body
• Hot forged CW617N brass body
• Stainless steel (1.4301 / AISI 304) filter
• Degree of filtration: 1/4” through 2” 500 μm, 2 1/2”, 3”, 4” 800 μm
Threads
• ISO 228/1 female by female parallel threads and inspection
plug
Working pressure & temperature
• 20 bar up to 2”, 16 bar over 2” non-shock cold working pressure
• -20°C to +110°C (-4°F to +230°F) in absence of steam
WARNING: freezing of the fluid in the installation may severely
damage the valve
