Product number:
1594

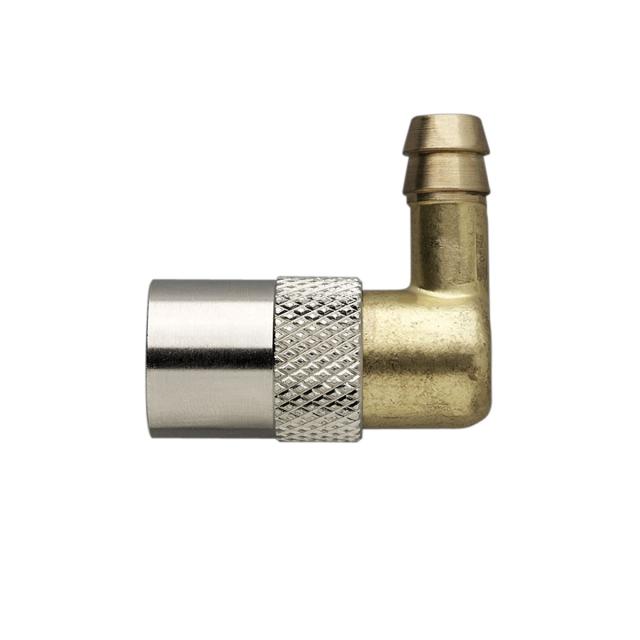

Úhlová rychlospojka 90° s trnem na hadici
- Mouldpro
Files
| Jméno | Stáhnout | Typ souboru |
|---|---|---|
| Datasheet-COUPLERS-International-Series.pdf | 543 KB |
Specifications
TECHNICAL DESCRIPTION
Coupling series especially developed for connecting coolant lines on injection moulds. Fully interchangeable with other brands with the same plug profiles. All dimensions and tolerances according to original specs.
WORKING PRESSURE
15 bar, maximum static working pressure with safety factor of 4 to 1
WORKING TEMPERATURE
Water -15°C up to +140°C, Oil -15°C up to +180°C
